Inductor charging & discharging

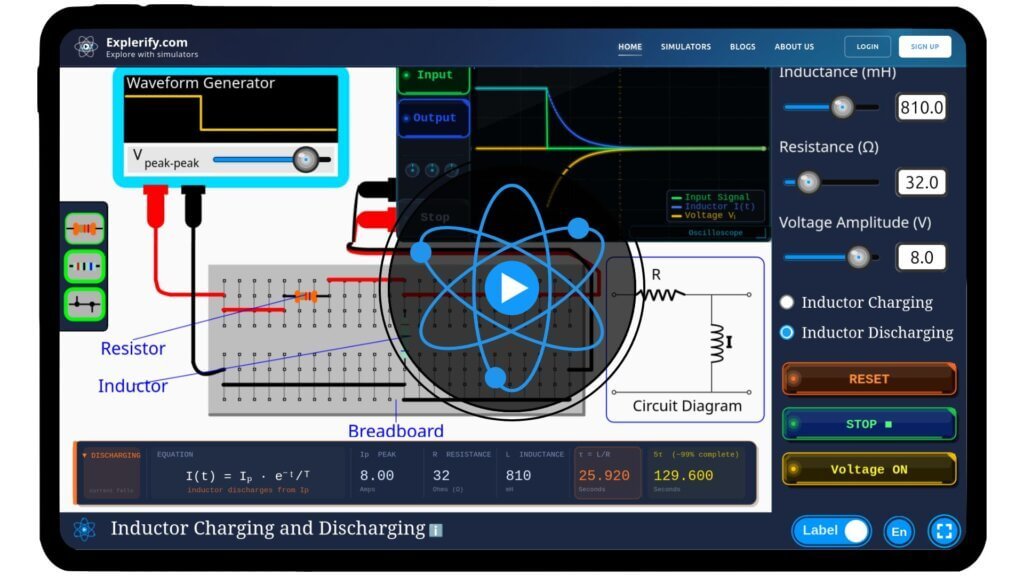

From tiny electronics to massive power grids, inductors play a vital role in electrical systems. Have you ever wondered how inductors store and release energy? Dive into the world of inductive circuits with our interactive simulator. Adjust the parameters, observe the charging and discharging cycles, and explore the interplay of current, voltage, and inductance in real time. Unravel the physics of inductors — start experimenting today!
\( \text{Charging :}I(t) = I_{0}(1-e^{t/ \tau})
\)
\( \text{Discharging :}I(t) = I_{0}e^{t/ \tau}
\)
\( \text{Voltage :} V =\pm L\frac{dI}{dt}
\)
Mathematical description
where:
- \( I(t) \) is the current as a function of time flowing through inductor
- \( I_{0} = V/R \) is the max current when inductor is fully charged
- \( R \) is the resistance of the resistor
- \( L \) is the inductance of the inductor
- \( \tau = L/R \) is the time constant of RL circuit
- \( t \) is the time elapsed
- \( V \) is the voltage as a function of time across inductor
- \( \pm \) +(-) corresponds to charging (discharging)
FAQs on Inductor charging & discharging
Qus 1. What happens when an inductor is charging?
When an inductor is charging (connected to a voltage source), the current through the inductor increases gradually. This is because an inductor opposes changes in current, creating a self-induced EMF that resists the increase in current.
Qus 2. What is the formula for inductor charging?
The current through the inductor during charging is given by: \[
I(t) = \frac{V_0}{L} \left( 1 – e^{-t/\tau} \right)
\] where \( V_o \) is the voltage supply, \( L \) is inductance, \( t \) is time and \( \tau\) is the time constant, defined as \( \tau = L/R \) (\( R \) is the resistance of the circuit)
Qus 3. What happens during the discharging of an inductor?
During discharging, the inductor releases the stored energy by allowing current to flow through the circuit. The current decreases exponentially until it reaches zero.
Qus 4. What is the formula for inductor discharging?
The current during discharging is given by:\[
I(t) = I_0 e^{-t/\tau}
\] where \( I_o \) is the initial current \( \tau =L/R \) is the time constant.
Qus 5. What is the time constant \( \tau \) in inductive circuits?
The time constant (\( \tau \)) is the time it takes for the current to either rise to 63% of its maximum value during charging or fall to 37% of its initial value during discharging.
Qus 6. Where are inductor charging and discharging used in real life?
Inductor charging and discharging play a vital role in many real applications:
1. Power Supply Filters
Inductors charge and discharge to smooth out current flow, reducing ripples in DC power supplies for stable device operation.
2. Transformers & AC Circuits
Inductors in transformers store and transfer energy between circuits through magnetic fields, crucial in electric grids and adapters.
3. Inductive Heating
In induction cooktops and industrial heating, inductors rapidly charge and discharge to generate localized heat through magnetic fields.
4. Electric Vehicles (EVs)
Inductors manage current flow in charging systems and DC-DC converters, improving energy efficiency in EVs.
5. Radio & Communication Systems
Inductors in LC circuits help in tuning frequencies, storing and releasing energy to filter or amplify radio signals.
6. Chokes in Electronics
Inductors called chokes resist sudden changes in current, protecting sensitive components in audio systems and LED drivers.
